Howo 8X4 371HP 375HP 12 tyres 40 ton second hand used tipper truck
- Product Details

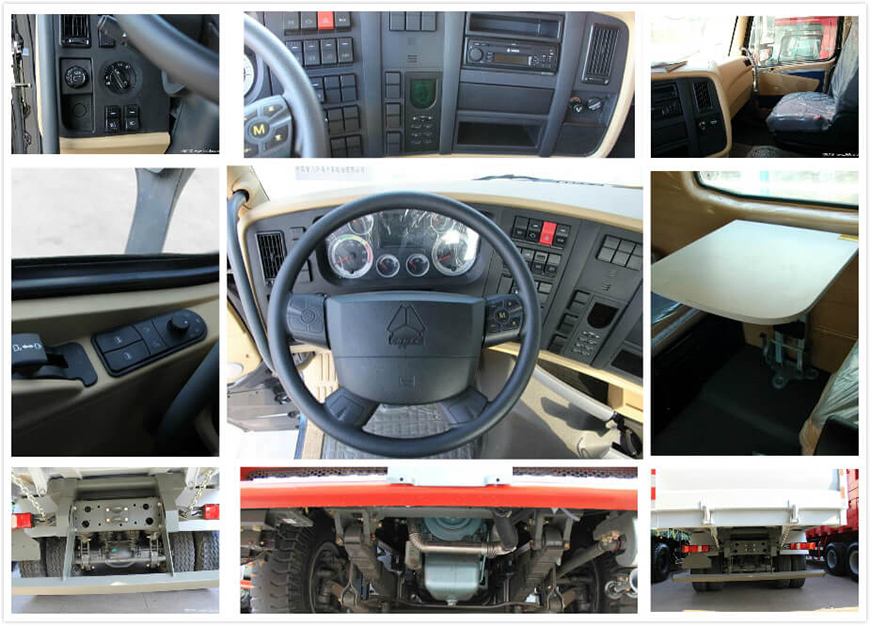

- Photo Details
|
Model |
HOWO |
|
Driving Type |
LHD (RHD is optional) |
|
Cabin |
HW76, with one sleeper , air conditioner |
|
Engine |
Engine model: WD615.47, Euro 2
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
|
|
Transmission |
HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
|
|
Steering |
ZF power steering, modol ZF8118, hydraulic steering with power assitance |
|
Front Axle |
HF9,1x9000 KGS Steering with doubleT-cross section beam |
|
Rear Axle |
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73
|
|
Propeller Shaft |
Double universal joint propeller shaft with gear-shaped coupling flange |
|
Chassis |
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
|
|
Brake |
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
|
|
Electrics |
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
|
|
Tyres |
12.00R20, radial tyres with one spare tyre |
|
Fuel Tank |
300L |
|
Cargo Body |
7600*2300*1500 mm, Floor 10mm Side 8mm |
|
Overall Dimension |
10300*2550*3450mm |
