Howo Garbage Truck


70T Mining Tipper Truck

Driving Type:6x4

Horse Power:336HP / 371HP

Transmission:HW19712, 12F & 2R

Loading Capacity:70 TONS

Inquiry Now

  • Product Details
  • Photo Details

Chassis Model


Driving Type



HW7D, two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.


Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47T2, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L


HW19712, 12F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)


ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF10,1x10000 KGS

Steering with doubleT-cross section beam

Rear Axle

AC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange


Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer


Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake


Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light


13.00-25, with one spare tyre

Fuel Tank


Cargo Body

5700*2800*1500 mm, 24CBM, Floor 14mm Side 12mm; Up tail without rear

Lifting System

HYVA 179 front lifting

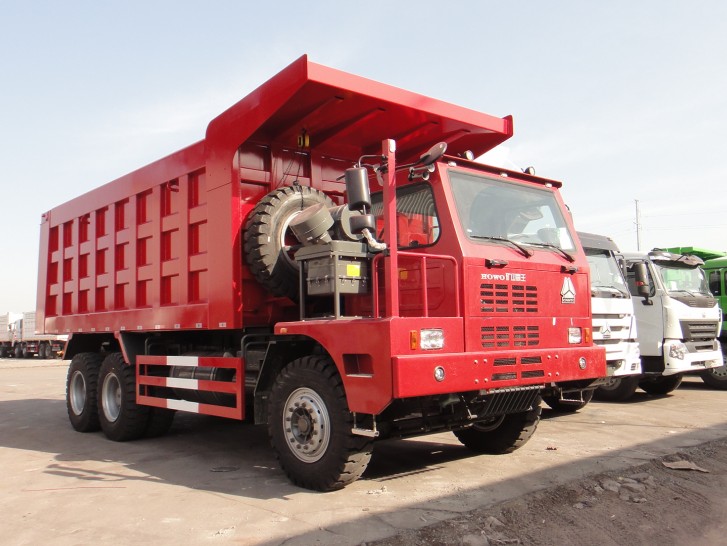

HOWO mine Overlord Dump Truck is a new model developed independently by CNHTC for all kinds of open-pit mines, steel mills, hydropower stations and wharves, and other non-road vehicles.


 — *
