CabinNew model
Hosre power:380/400
Wheels12
Capcity30-40tons

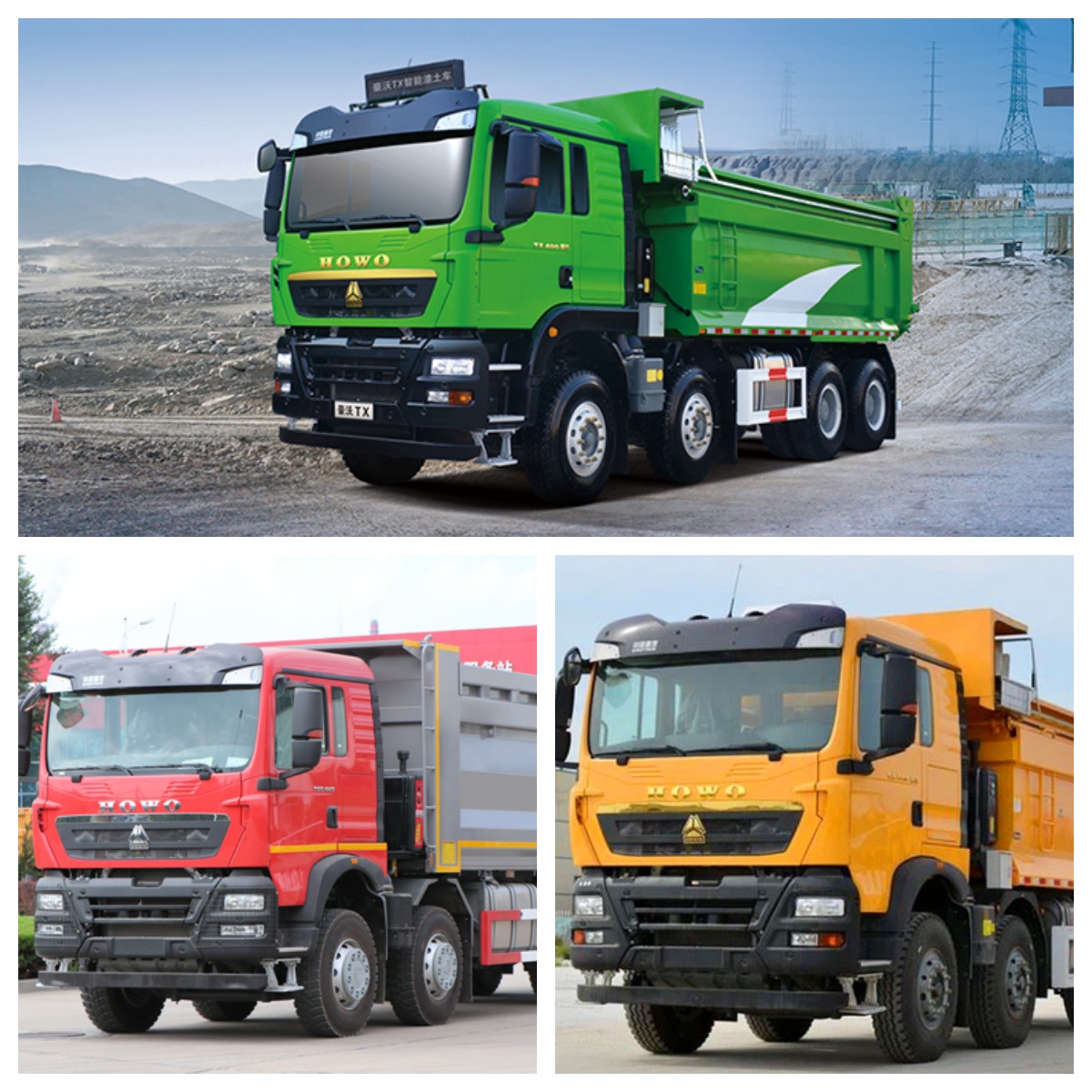

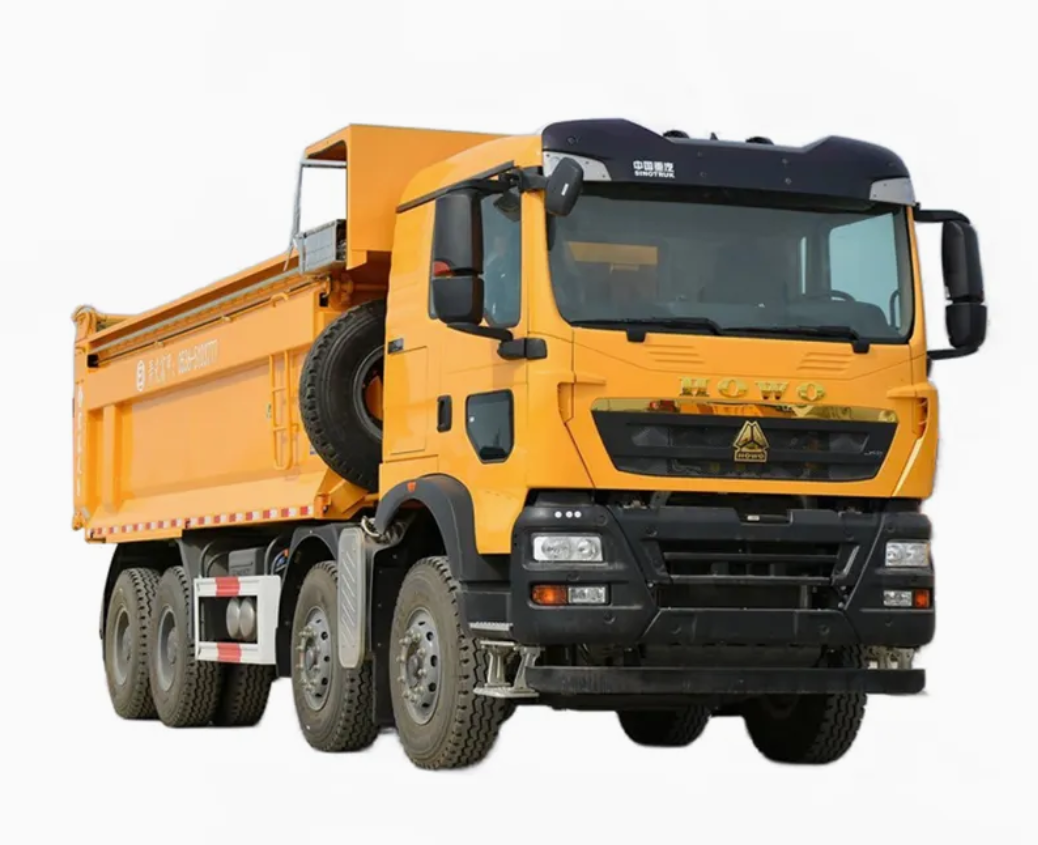

| Howo TX 8X4 Dump Truck | ||
| Vehicle Model | ZZ3317N356GB1R | |
| Engines | Model | WP10.380E22 |
| Net power (kw) /speed (r/min) | 257/2100 | |
| Maximum torque (Nm) /speed (r/min) | 1400/1200-1600 | |
| Transmission | HW19710 + HW50 | |
| Clutches（mm） | ||
| Rear axle model | MCX16ZG Self-aligning arm double rear axle (drum) | |
| Rear axle speed ratio | 5.451 | |
| Oil tank（L） | 400 | |
| Frame section（mm） | 8+4/280 | |
| Tires | 12.00R20 (Mixed Patterns/18PR) | |
