Howo Dump Truck

/data/attachment/201902/21/bfe16b3a9684233930d8845a8fbfe498.JPG

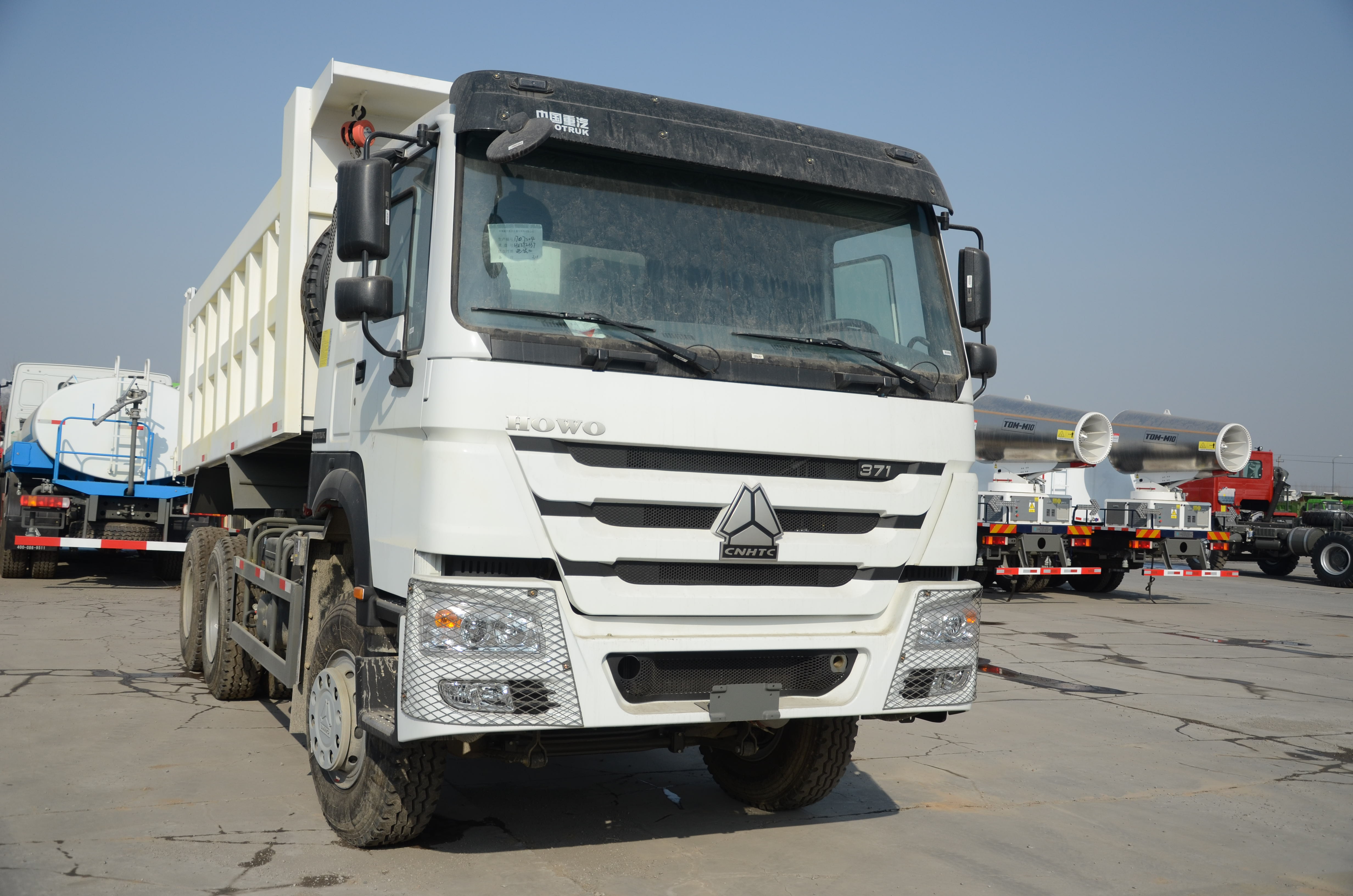

SINOTRUK HOWO 25 ton dump truck for sale

Truck ModelZZ3257N3847A

Driving StyleLeft/Right Hand Driving are available

Drive Wheel6x4

Hosre power371HP

Inquiry Now

  • Product Details
  • Photo Details



Truck Model

ZZ3257N3847A

Truck Brand

SINOTRUK HOWO

Driving Style

Left/Right Hand Driving are available

Dimension (L*W*H)(unloaded)(mm)

8545x2496x3270

Cargo body size (L*W*H, mm)

5800x2300x1500

Cargo thickness (mm)

Bottom: 8/10/12 or as your choice

Side: 6/8/10 or as your choice

Lift type of Carriage

Middle/Front lifting

Approaching angle / Departure angle (°)

19/37

Overhang(front / rear)(mm)

1500/1870

Wheel base (mm)

3825+1400

Max speed (km/h)

75

Curb weight (kg)

12460

Loading Weight (kg)

25000

Fuel tanker capacity (L)

300

Fuel consumption (L/km)

28L/100

Clutch

Single-plate dry clutch Φ 430mm

Fuel type

Diesel

Horse Power, max (kw/rpm)

371HP

Emission

EURO II

Transmission

HW19710 , 10 forwards and 2 reverse



Truck Model

ZZ3257N3847A

Truck Brand

SINOTRUK HOWO

Driving Style

Left/Right Hand Driving are available

Dimension (L*W*H)(unloaded)(mm)

8545x2496x3270

Cargo body size (L*W*H, mm)

5800x2300x1500

Cargo thickness (mm)

Bottom: 8/10/12 or as your choice

Side: 6/8/10 or as your choice

Lift type of Carriage

Middle/Front lifting

Approaching angle / Departure angle (°)

19/37

Overhang(front / rear)(mm)

1500/1870

Wheel base (mm)

3825+1400

Max speed (km/h)

75

Curb weight (kg)

12460

Loading Weight (kg)

25000

Fuel tanker capacity (L)

300

Fuel consumption (L/km)

28L/100

Clutch

Single-plate dry clutch Φ 430mm

Fuel type

Diesel

Horse Power, max (kw/rpm)

371HP

Emission

EURO II

Transmission

HW19710 , 10 forwards and 2 reverse

Brake system

Dual circuit compressed air brake

Parking brake

Spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

ZF8118 hydraulic steering with power assistance

Front axle

HF9/HR9 , Steering with double T-cross section beam

Rear axle

HC16/AC16,Pressed axle housing,central double reduction with differential locks between axles and wheels

Color

Optional( White , Red , yellow or as your choice )

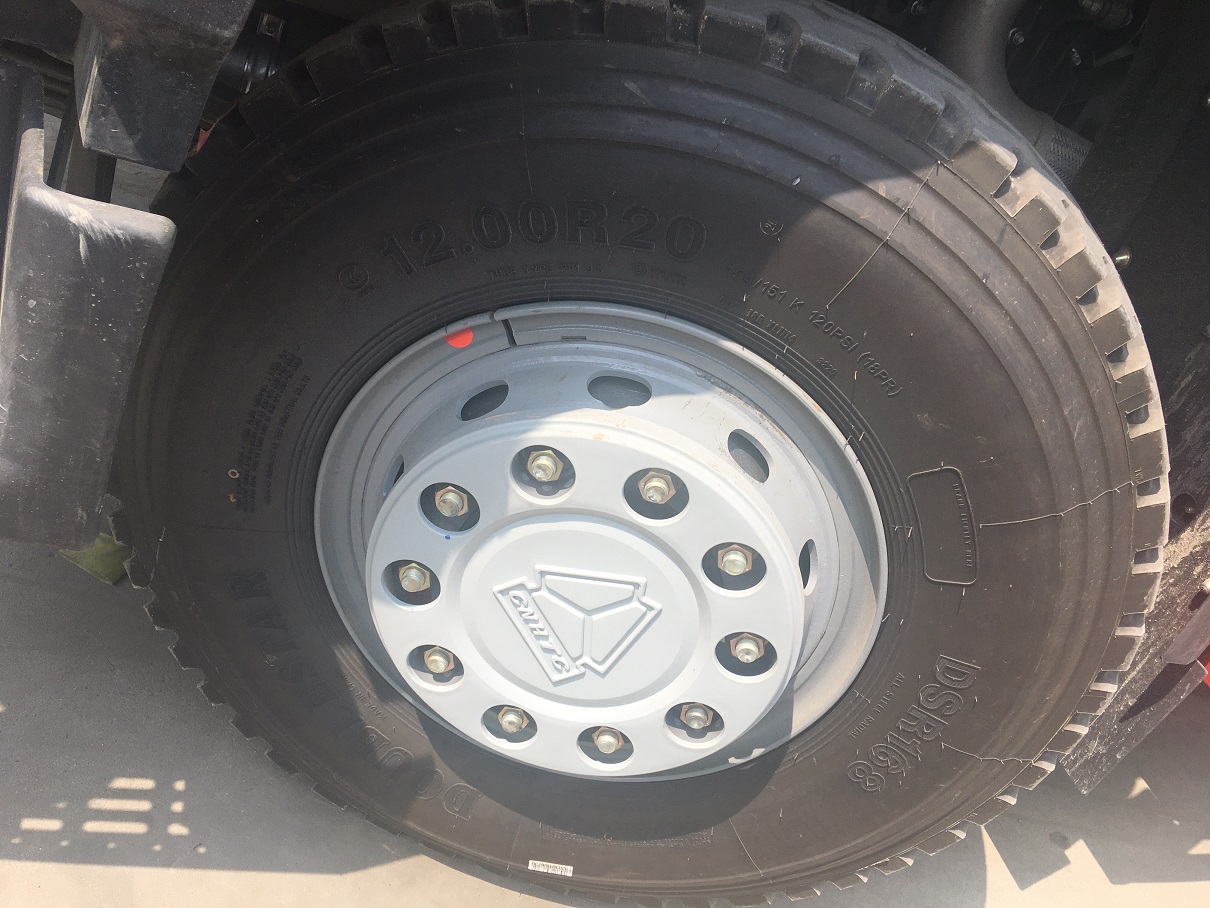

Tyre

11.00R20/12.00R20/315/80R22.5

Cab

HOWO76 cab,single sleeper with air conditioner

all-steel forward control,55º hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds,laminated windscreen with casted-inradio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,outer sun visor,adjustable roof flap,with stereo radio/cassette recorder

safety belts and adjustable steering wheel,air horn,with 4-point support fully floating suspension and shock absorber
