Driving Type:LNG
Cabin Type：Single Berth
Horse Power:375HP
Transmission:HW19712, 12F & 2R
|
VEHICLE SPECIFICATION |
DESCRIPTION |
|
Truck Model |
ZZ4257N3647B |
|
Type of Vehicle |
TRACTOR TRUCK |
|
Truck Brand |
SINOTRUK—HOWO |
|
Driving Position |
Left hand Driving |
|
Fuel tanker capacity(L) |
400 |
|
The Total Mass |
50,000kg |
|
Dead Weight |
8800 |
|
Max speed(km/h)(km/h) |
101 |
|
Color |
Optional |
|
Chassis & Add Components |
|
|
Frame Details |
High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members. |
|
Dimension(Lx W xH)(unloaded)(mm) |
6985x2496x3800 |
|
Approaching angle/Departure angle(°) |
16/70 |
|
Overhang(front/rear) (mm) |
1500/725 |
|
Wheel base (mm) |
3225+1350 |
|
Engine |
|
|
Model |
WD615 |
|
Power |
375hp/274kw.2000r/min |
|
Emission |
EURO II |
|
Cylinder bore*stroke(mm) |
126*155 |
|
Displacement(L) |
9.726 |
|
Type |
water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
|
Kind of Fuel |
Diesel |
|
Fuel Consumption(L/100km) |
30L/100km |
|
Clutch & Gear Box System |
|
|
Clutch |
SINOTRUKΦ430mm diaphragm spring clutch |
|
Gear Box |
HW19710 |
|
Axles |
|
|
Front Axle Model |
HF9 axle. |
|

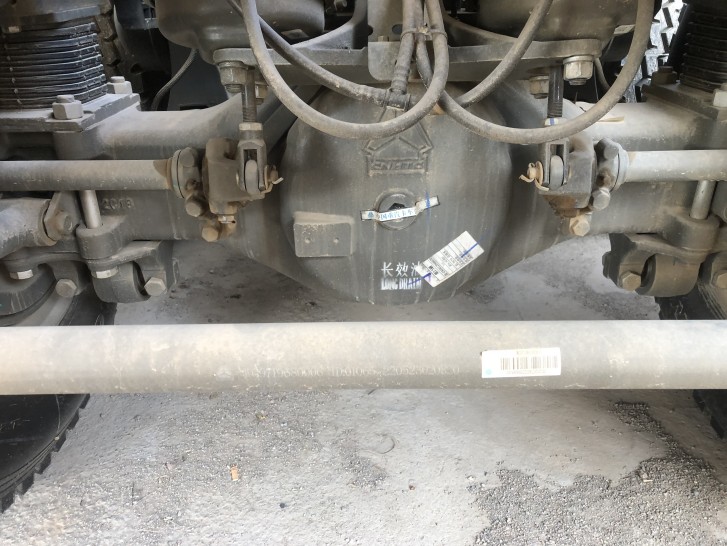

Rear Axle |
HC16 axle. |
|
Ratio of rear axle |
4.42 |
|
Electrical System |
|
|
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
|
Starter |
7.5Kw/24V |
|
Brake System |
|
|
Service brake |
Dual circuit compressed air brake,ABS |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
Auxiliary brake |
Engine exhaust brake |
|
Steering system |
|
|
Type |
Hydraulic steering with power assistance |
|
Wheels & Tyres |
|
|
Type |
12.00R22.5 |
|
Material |
Steel tires |
|
Quantity |
10 PCS |
|
Kin pin |
90# |
